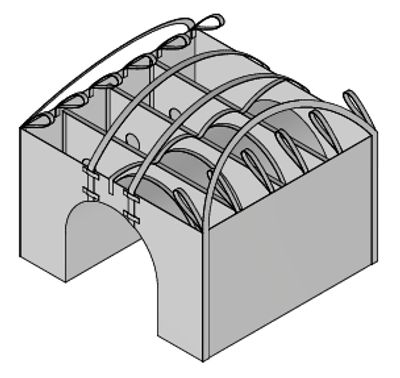

GENERAL PRODUCT SIZING, DIMENSIONS, AND NOMINAL CAPACITY

---

  Volume  calculations account for the total interior area of the device. The design filled-weight mass model includes the entire interior area at the top-of-pipe level,  based on a nominal (median) sand or aggregate density of 104 lb/ft³.

•  Available Sizes: 20"–24"
•  Overall Dimensions: 63" W × 94" D × 26.5" H
•  Filled Weight: 5,000 lbs
•  Maximum Fill Volume: 2.45 cubic yards

•  Size: 30"
•  Overall Dimensions: 74" W × 94" D × 34" H
•  Filled Weight: 7,000 lbs
•  Maximum Fill Volume: 3.70 cubic yards

•  Size: 36"
•  Overall Dimensions: 76" W × 94" D × 46.5" H
•  Filled Weight: 9,000 lbs
•  Maximum Fill Volume: 4.55 cubic yards

•  Size: 42"
•  Overall Dimensions: 91" W × 94" D × 52" H
•  Filled Weight: 12,5000 lbs
•  Maximum Fill Volume: 6.38 cubic yards

•  Size: 48"
•  Overall Dimensions: 97" W × 94" D × 55" H
•  Filled Weight: 14,000 lbs
•  Maximum Fill Volume: 7.10 cubic yards
